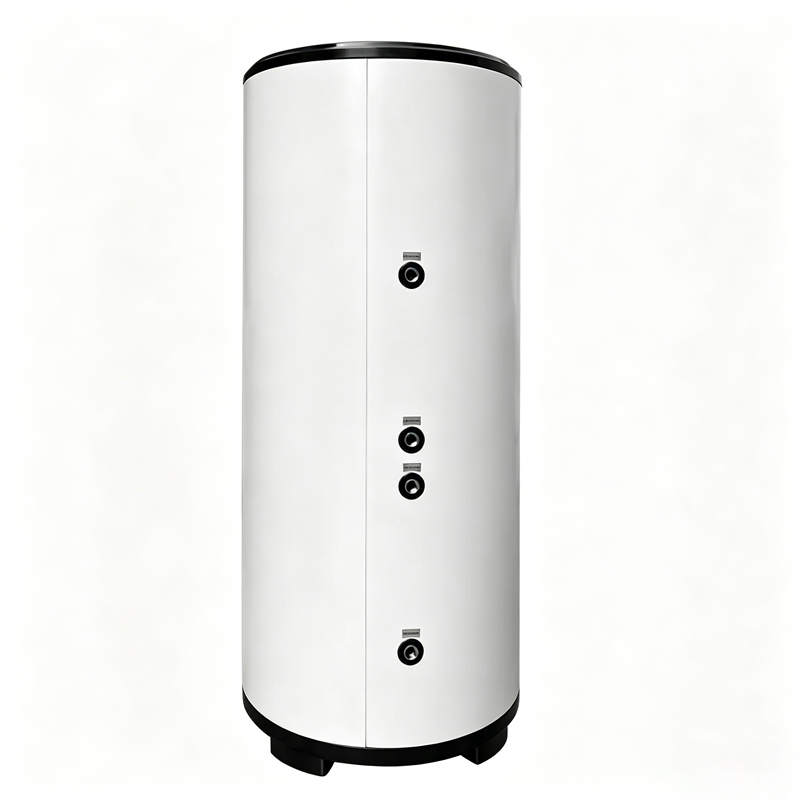

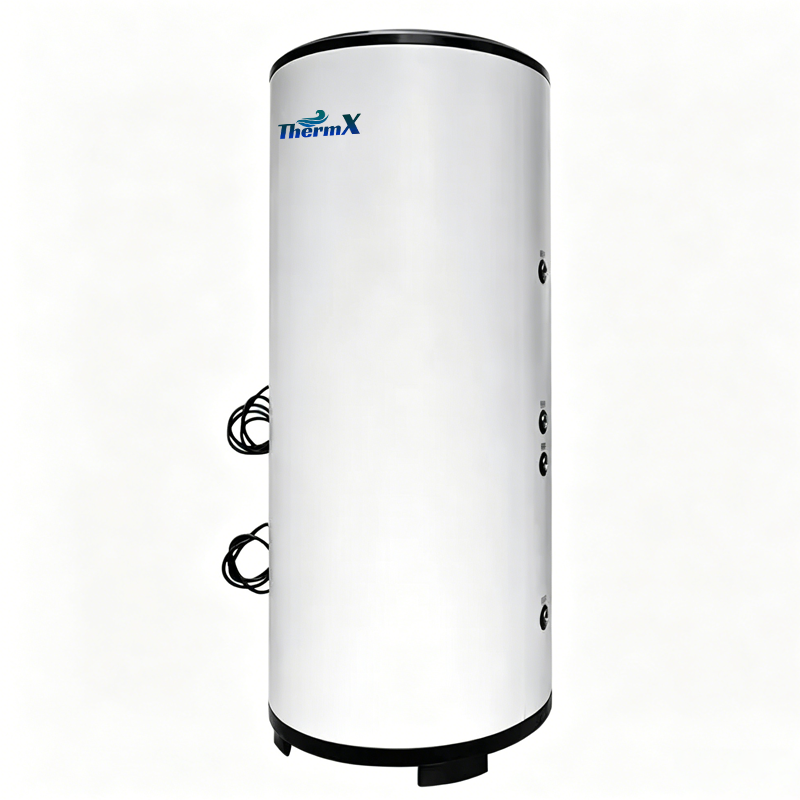

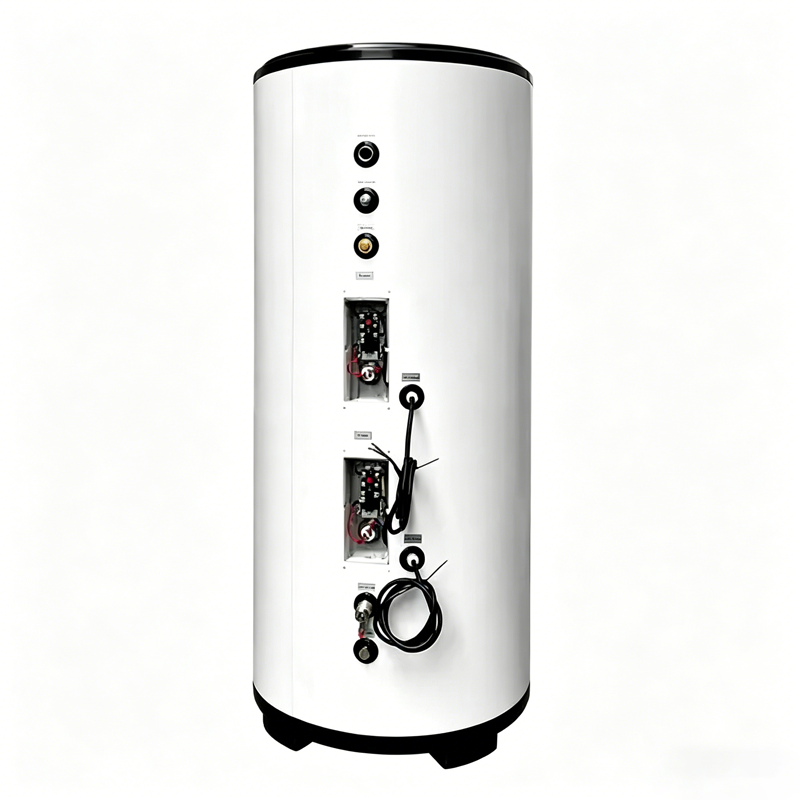

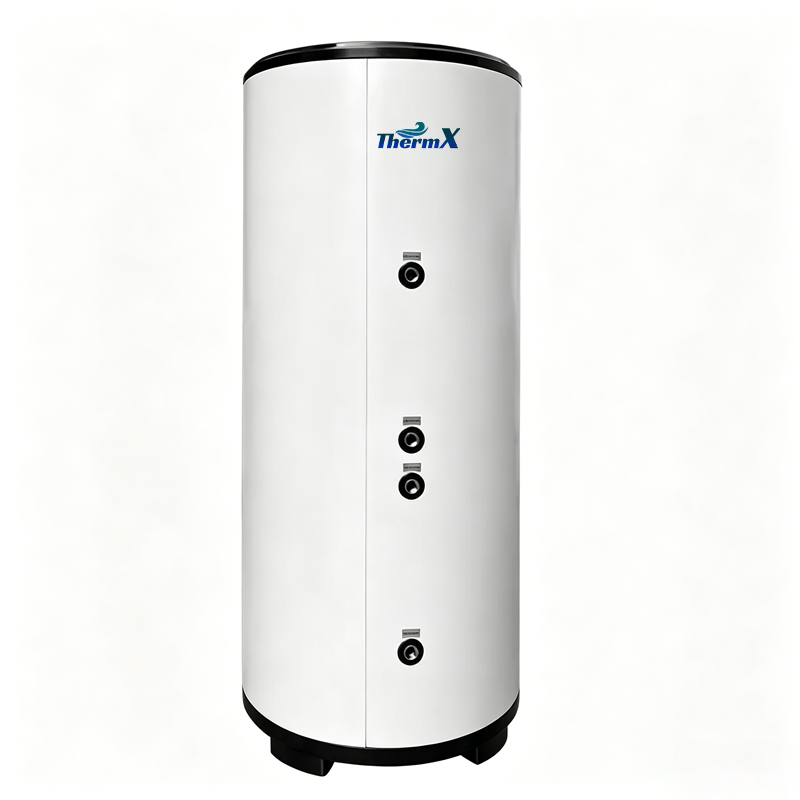

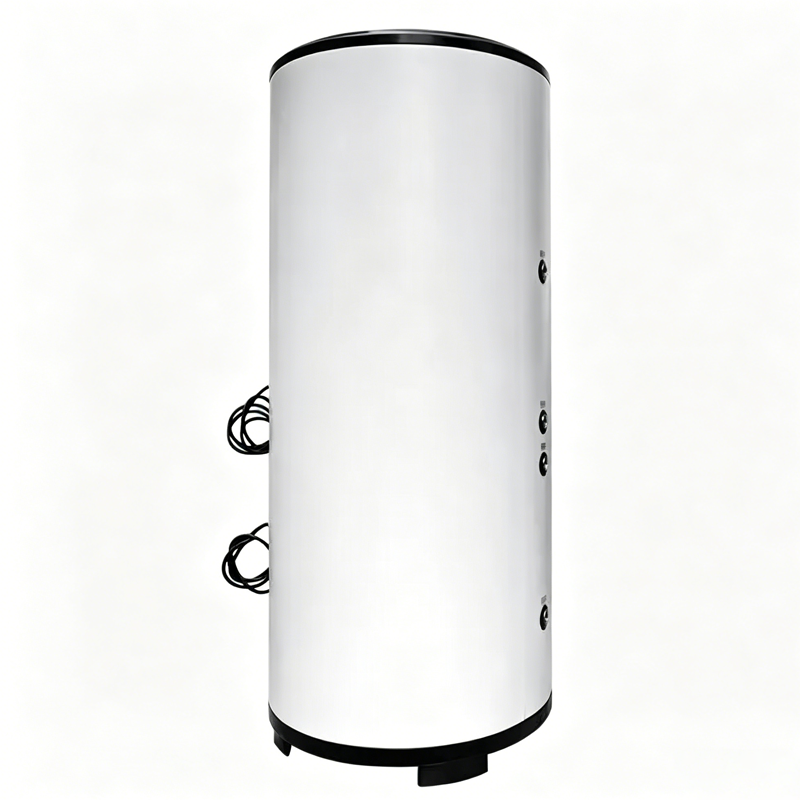

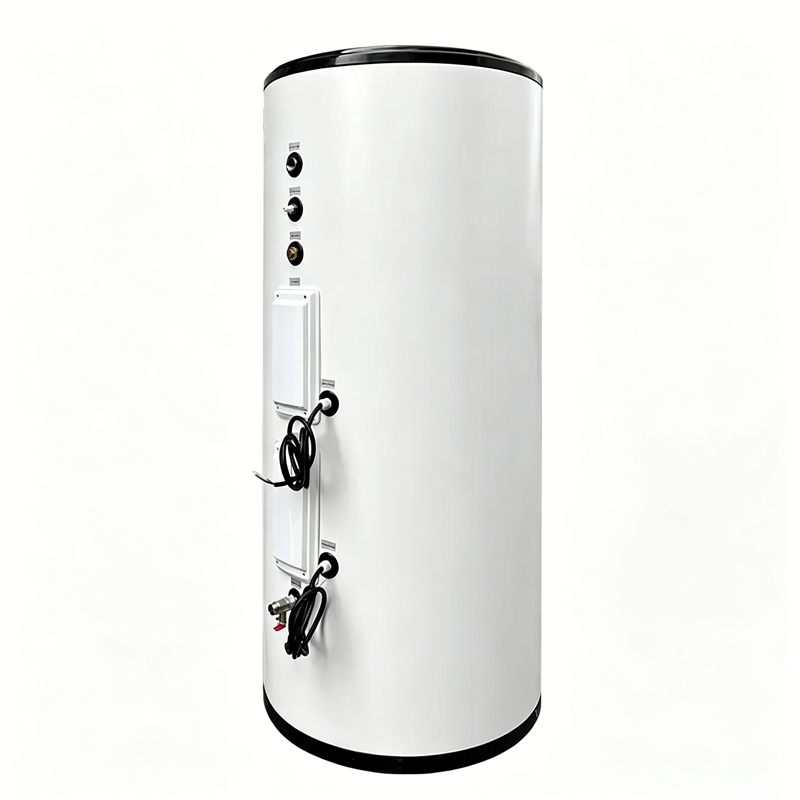

Duplex Stainless Steel DHW Cylinders_DHW Cylinder_Cylinder_Products

Capacity/Volume	200L	300L	500L
Diameter of inner tank	Φ420mm	Φ500mm	Φ600mm
Diameter of outer case	Φ520mm	Φ600mm	Φ700mm
Height	1568mm	1568mm	1820mm
Material of inner tank	DUPLEX2101	DUPLEX2101	DUPLEX2101
Thickness of inner tank	1.0mm	1.2mm	1.5mm
Inner tank cover	1.2mm	1.2mm	1.5mm
Material of outer case	Galvanized steel with painting	Galvanized steel with painting	Galvanized steel with painting
Electric heater	G1'' F	G1'' F	G1'' F
Electrical heater power	3Kw	3Kw	3Kw
Thermostat	Wall-mounted Thermostat	Wall-mounted Thermostat	Wall-mounted Thermostat
Temp. sensor pipe	ID8mm	ID8mm	ID8mm
Cold water inlet	G3/4''	G3/4''	G3/4''
Hot water outlet	G3/4''	G3/4''	G3/4''
Anode	G3/4''	G3/4''	G3/4''
T/P valve	G3/4''	G3/4''	G3/4''
Back water	G3/4''	G3/4''	G3/4''
Water drain	G3/4''	G3/4''	G3/4''
Circulating inlet	G1''	G1''	G1''
Circulating outlet	G1''	G1''	G1''
Wave coil	Φ28*15m(SUS316L)	Φ32*20m(SUS316L)	Φ32*20m(SUS316L)
Heat exchanger area	2.0Ⅳ	3.0Ⅳ	3.0Ⅳ
Working pressure	6bar	6bar	6bar
Testing pressure	10bar	10bar	10bar
Insulation thickness	Polyurethane	Polyurethane	Polyurethane
Insulation thickness	50mm	50mm	50mm
Packing size	5905901678mm	6706701700mm	7687681970mm
