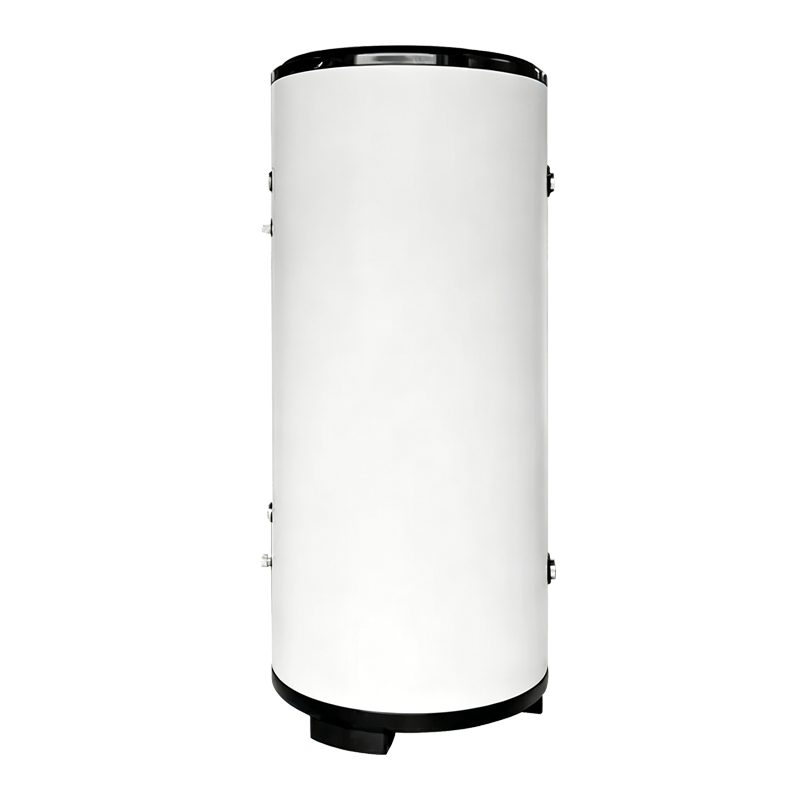

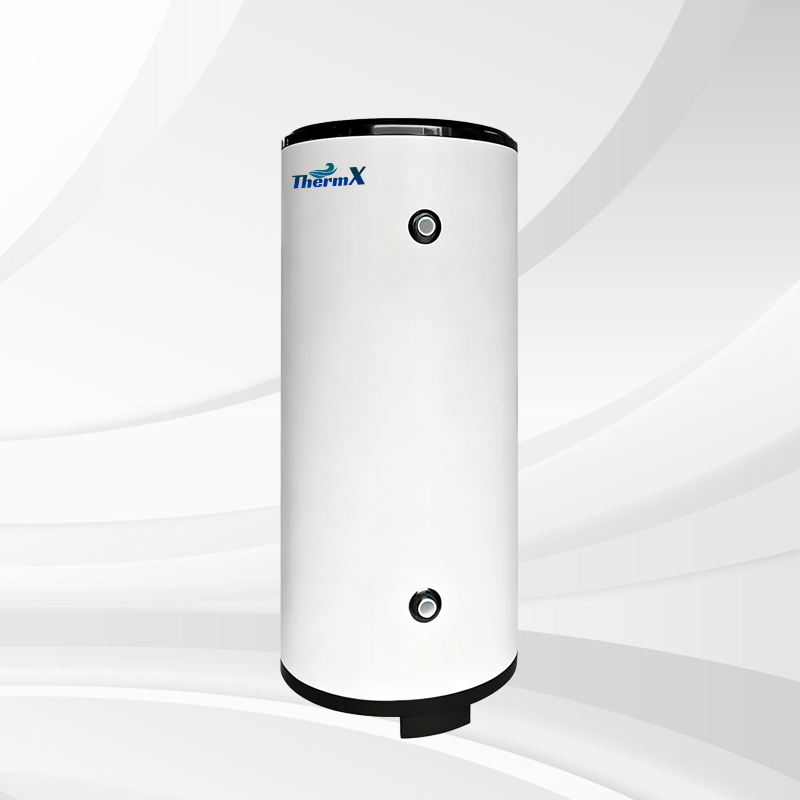

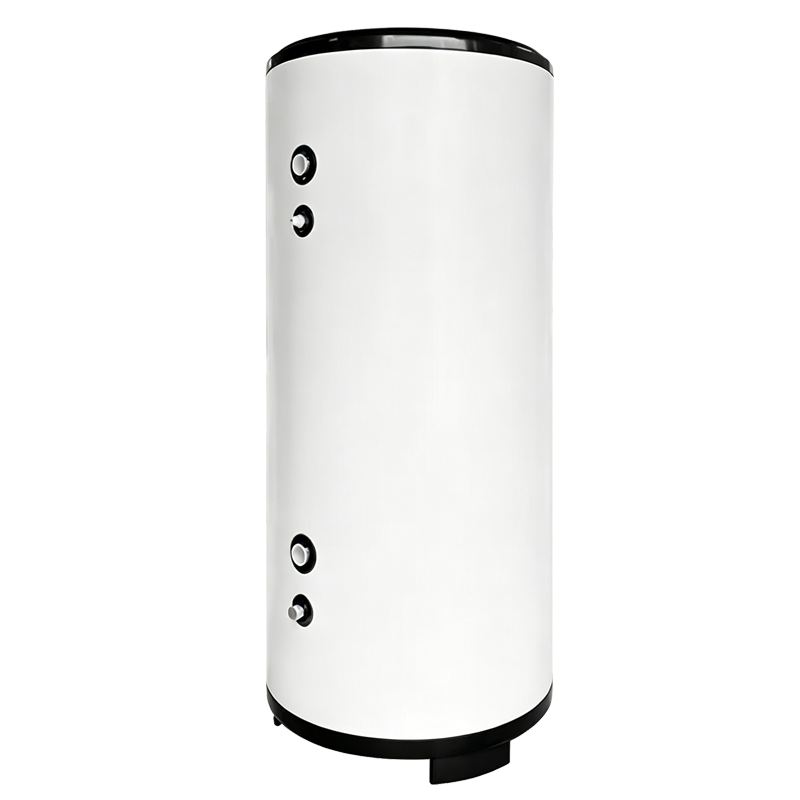

304 316 Stainless Steel DHW Cylinders
| Model | 100L | 200L | 250L | 300L | 400L | 500L | 600L | 800L | 1000L |
| Nominal capaicty | 100L | 200L | 250L | 300L | 400L | 500L | 600 | 800 | 1000 |
| Outet tank diamter (mm) | Φ470 | Φ520 | Φ560 | Φ600 | Φ700 | Φ700 | 700 | 900 | 900 |
| Inner tank diamater(mm) | Φ370 | Φ420 | Φ470 | Φ500 | Φ600 | Φ600 | 600 | 800 | 800 |
| Tank Height (mm) | 1115 | 1545 | 1625 | 1595 | 1625 | 1915 | 2100 | 2050 | 2200 |
| Inner tank material | stainless steel SUS304 or SUS316L |
| Inner tank thickness | 1.2mm | 1.2mm | 1.5mm | 1.5mm | 1.5mm | 1.8mm | 2.0mm | 3.0mm | 3.0mm |
| Outer shell material | Glavalized steel with white/sliver-grey color painting, thickness 0.5mm |
| Connections | Factory standard: water inlet &outlet G3/4″, air vent hole G3/4″, temp. sensor hole G1/2″, water drain G1/2″male; or customerized |
| Heat ex-changer coil | Φ22*10m | Φ22*10m | Φ22*15m | Φ22*20m | Φ28*15m | Φ28*20m | Φ28*25m | Φ28*30m | Φ28*40m |
| Working pressure | 0.6MPa |
| Max. pressure | 1.0MPa |
| Foaming insulation | Cyclopentane combination polyether foaming, thickness 50mm |
| Package size | 535/535/1170 | 535/535/1600 | 630/630/1680 | 670/670/1660 | 780/780/1680 | 780/780/1970 | 780/785/2160 | 985/985/2120 | 985/985/2180 |
