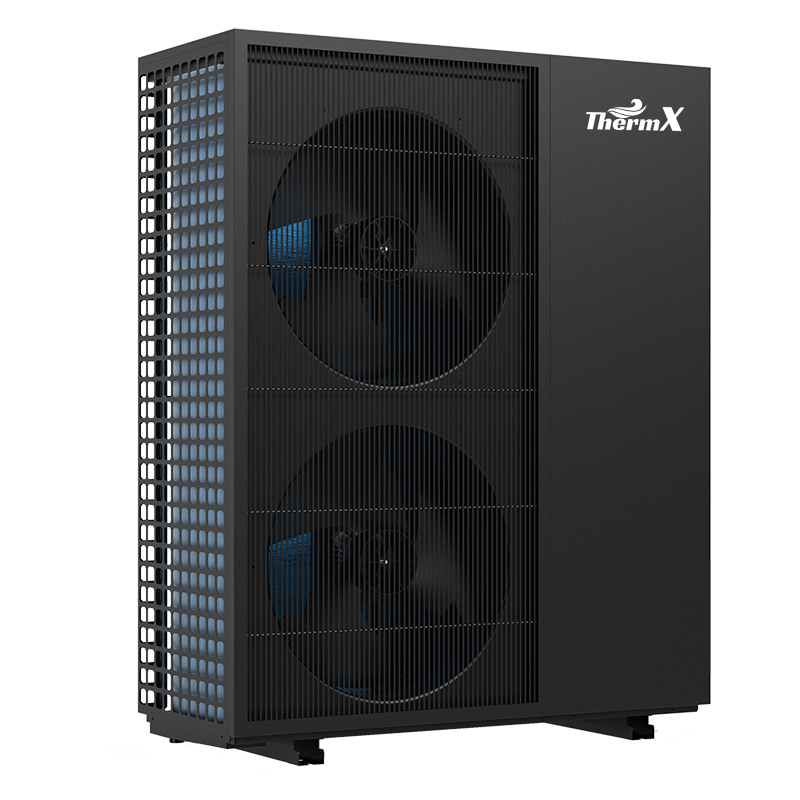

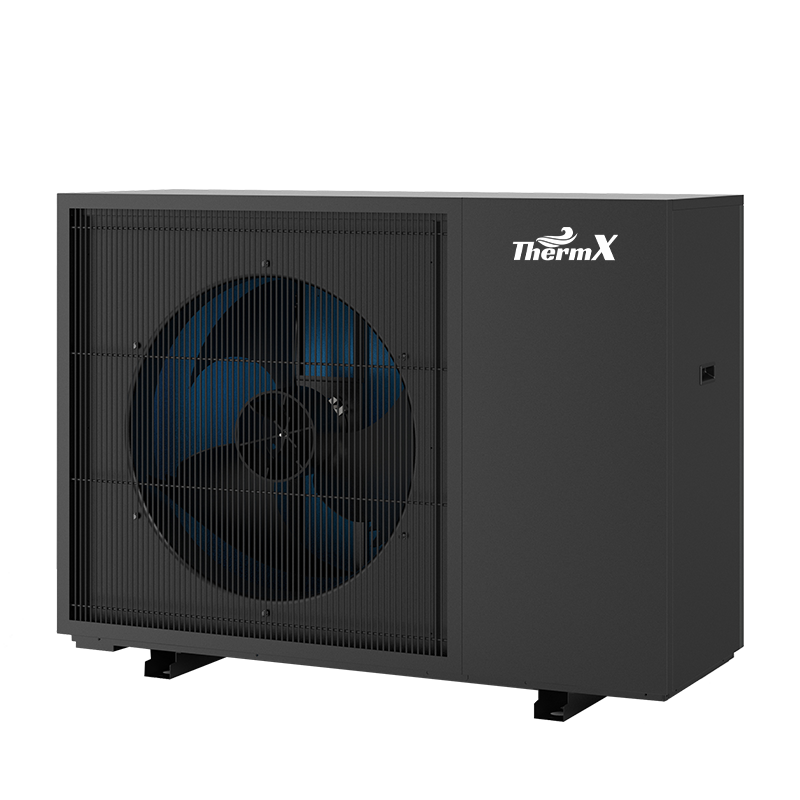

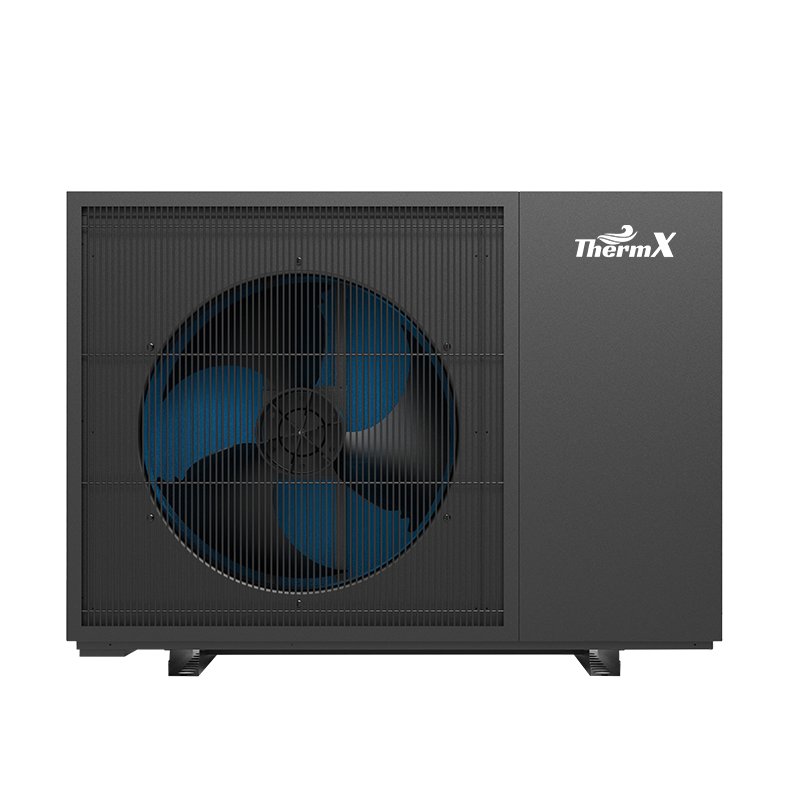

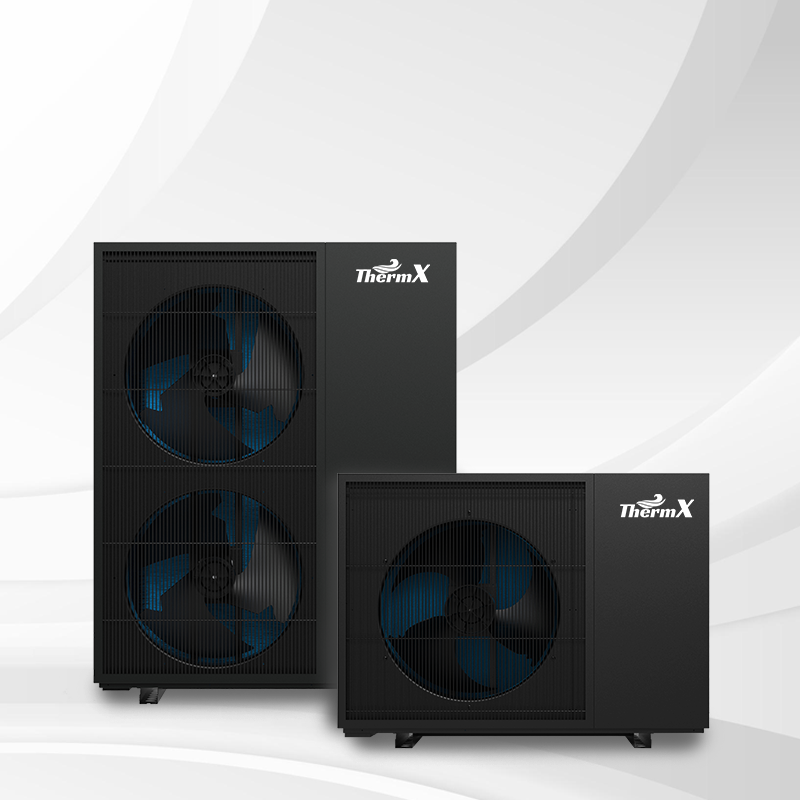

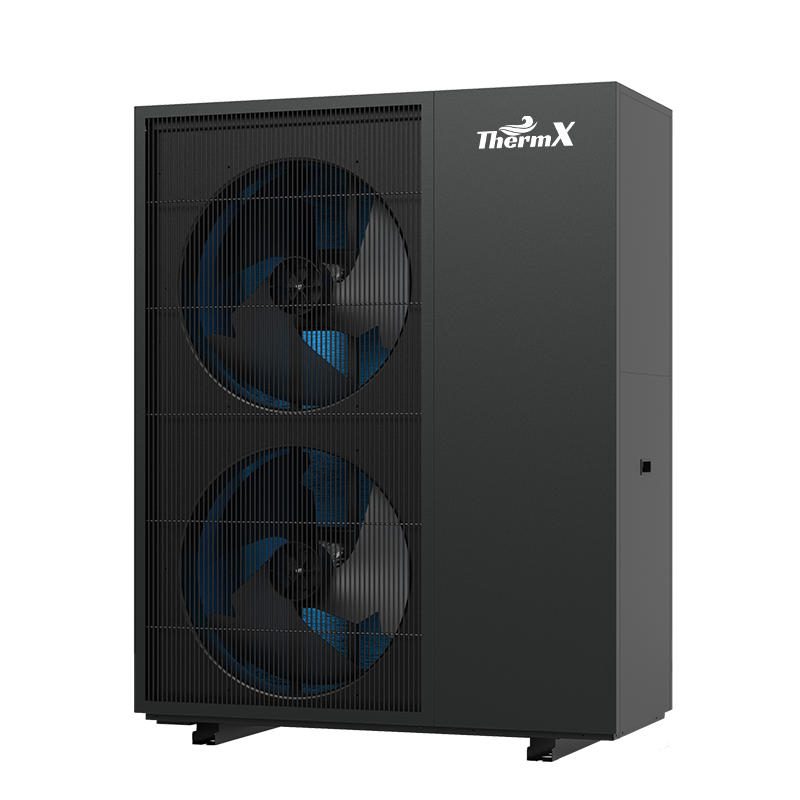

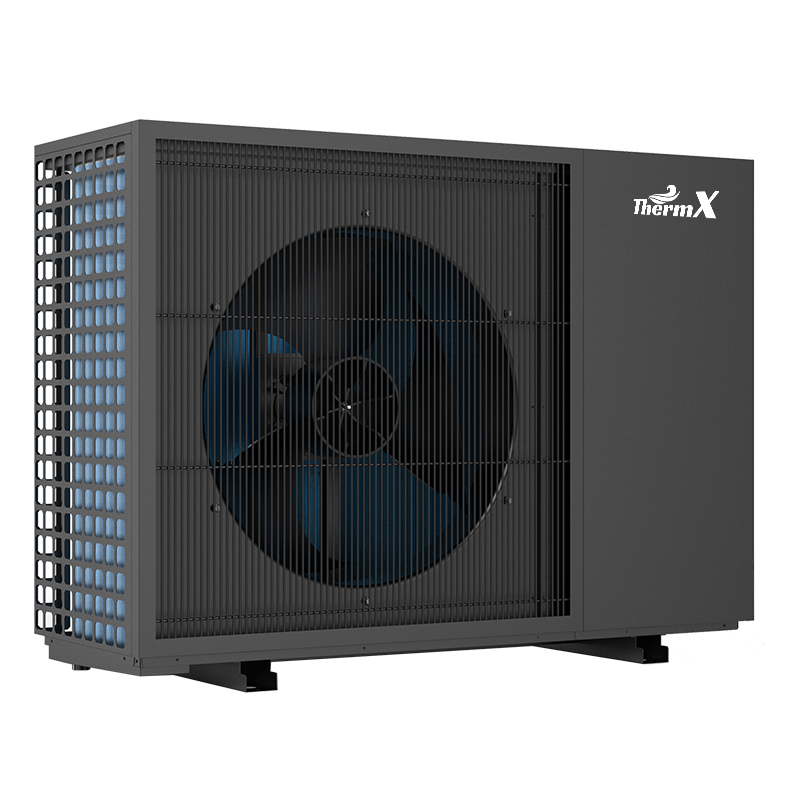

R290 Residential Air-to-Water Heat Pumps
Product Features
- • Eco-friendly R290 Refrigerant
- • Dual A+++ Efficiency at 55°C & 35°C
- • 75℃ High-Temperature Water Outlet
- • Stable Operation under Low Temperature at -25°C
- • Noise Level as Low as 39dB(A)
- • Remote Control Management: WiFi & APP & IOT platform
R290 Refrigerant – Eco-Friendly & Future-Ready
Powered by R290, a natural refrigerant with ultra-low GWP (≤ 3) and zero ODP, this heat pump delivers outstanding environmental performance. Fully compliant with the latest EU regulations, it reduces carbon emissions while ensuring long-term sustainability and future readiness.
Outstanding Energy Efficiency – ErP A+++ at 35°C & 55°C
ErP A+++ rated at both 35°C and 55°C, with customizable energy settings and a built-in Smart Grid function to lower electricity costs. Delivers superior seasonal heating performance and reduced operating expenses.

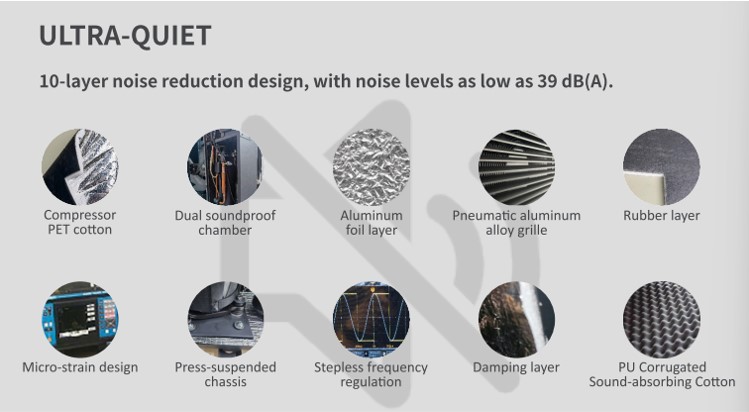

Ultra-Low Noise Performance
Equipped with a super-quiet chamber, sound-absorbing panels, and notched fan blades, the unit minimizes noise from the compressor, pump, and piping—achieving just 40 dB(A) at 1 meter for a peaceful environment.

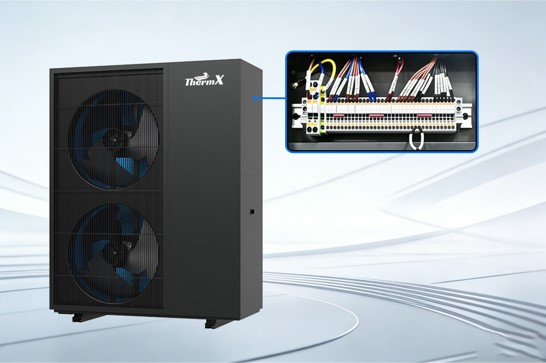

Integrated 35-Position Terminal
Our 35-position plug-and-play terminal streamlines wiring, simplifies installation and maintenance, and safely separates high- and low-voltage circuits for maximum safety and convenience.

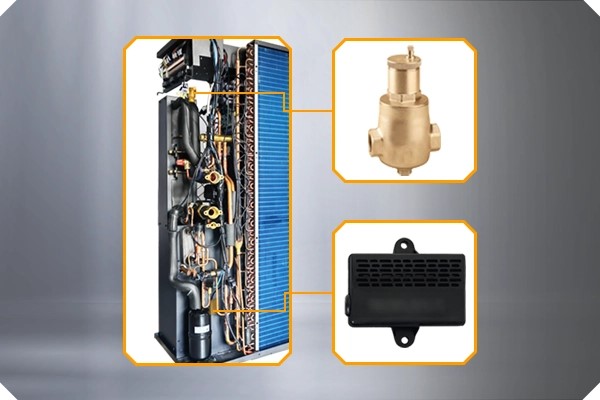

Advanced Safety Protection with Intelligent Refrigerant Leak Detection
Designed with safety as a top priority, this unit addresses the flammable and explosive characteristics of R290 refrigerant through a comprehensive protection system. A highly sensitive refrigerant leak sensor continuously monitors for potential leaks. If a leak is detected, the system immediately triggers a fault alarm, automatically shuts down the compressor, and runs the fan at maximum speed to enhance ventilation and ensure user safety.
In addition, the unit is equipped with an automated pressure relief valve and an optional gas separator, working together to prevent refrigerant from entering and contaminating the water system—delivering reliable, worry-free operation.

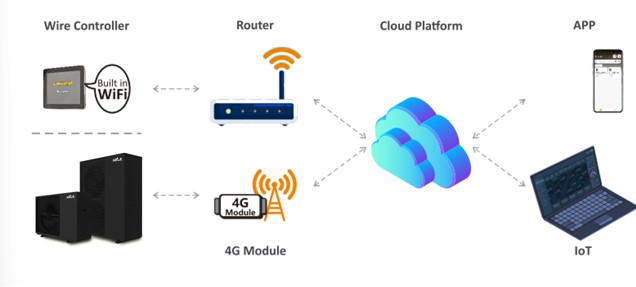

Smart Control & IoT Connectivity
Featuring a 7-inch display with 2.4G WiFi and Tuya App compatibility, the unit includes a high-accuracy temperature sensor and full IoT functionality. Standard app control and cloud connectivity allow users to monitor performance, adjust settings remotely, receive alerts, and track energy usage. Up to 16 units can be cascaded for seamless multi-system management, enhancing convenience and long-term efficiency.
| Model | ThermX-G6 | ThermX-G8 | ThermX-G10 | ThermX-G10-3 | ThermX-G12 | ThermX-G10-3 | ThermX-G16 | ThermX-G16-3 | ThermX-G18 | ThermX-G18-3 | ThermX-G24-3 |
| Power Supply(V/PH/HZ) | 220~240/1/50 | 220~240/1/50 | 220~240/1/50 | 380~415/3/50 | 220~240/1/50 | 380~415/3/50 | 220~240/1/50 | 380~415/3/50 | 220~240/1/50 | 380~415/3/50 | 380~415/3/50 |
| Heating Capacity(Max.)(A7/6℃, W30/35℃) | |||||||||||
| Heating Capacity(kW) | 6.07(2.63~9.10) | 8.11(3.57~12.29) | 10.25(4.39~13.50) | 10.25(4.39~13.50) | 11.98(4.39~15.45) | 11.98(4.39~15.45) | 16.20(6.17~18.51) | 16.20(6.17~18.51) | 17.60(6.50~22.00) | 17.60(6.50~22.00) | 24.05(9.63~29.13) |
| Power Input(kW) | 1.19(0.54~2.28) | 1.60(0.74~3.17) | 2.07(0.89~3.55) | 2.07(0.89~3.55) | 2.45(0.89~4.06) | 2.45(0.89~4.06) | 3.38(1.26~4.83) | 3.38(1.26~4.83) | 3.62(1.35~5.88) | 3.62(1.35~5.88) | 4.96(2.00~7.82) |
| COP | 5.10(4.20~5.40) | 5.07(4.10~5.35) | 4.95(3.90~5.30) | 4.95(3.90~5.30) | 4.89(3.85~5.20) | 4.89(3.85~5.20) | 4.79(3.75~5.00) | 4.79(3.75~5.00) | 4.86(3.82~5.30) | 4.86(3.82~5.30) | 4.85(3.86~5.30) |
| Heating Capacity(Max.)(A7/6℃, W47/55℃) | |||||||||||
| Heating Capacity(kW) | 5.99(2.99~8.19) | 8.11(3.65~10.96) | 10.07(3.85~11.75) | 10.07(3.85~11.75) | 11.55(3.85~13.35) | 11.55(3.85~13.35) | 15.89(5.75~17.20) | 15.89(5.75~17.20) | 17.85(5.45~18.89) | 17.85(5.45~18.89) | 23.85(8.45~25.89) |
| Power Input(kW) | 1.87(1.03~2.92) | 2.65(1.11~3.87) | 3.12(1.20~4.35) | 3.12(1.20~4.35) | 3.71(1.20~5.03) | 3.71(1.20~5.03) | 5.30(1.81~5.84) | 5.30(1.81~5.84) | 5.88(2.15~6.85) | 5.88(2.15~6.85) | 8.01(2.86~9.12) |
| COP | 3.02(2.90~3.46) | 3.18(2.83~3.45) | 3.23(2.75~3.57) | 3.23(2.75~3.57) | 3.11(2.65~3.57) | 3.11(2.65~3.57) | 3.00(2.83~3.45) | 3.00(2.83~3.45) | 3.03(2.64~3.57) | 3.03(2.64~3.57) | 2.98(2.84~3.57) |
| Cooling Capacity(Max.)(A35/24℃, W12/7℃) | |||||||||||
| Cooling Capacity(kW) | 5.00(1.38~5.70) | 7.10(1.44~8.11) | 8.50(3.65~9.45) | 8.50(3.65~9.45) | 10.00(3.65~11.04) | 10.00(3.65~11.04) | 13.00(4.03~13.51) | 13.00(4.03~13.51) | 15.00(4.55~17.20) | 15.00(4.55~17.20) | 17.00(6.15~19.50) |
| Power Input(kW) | 1.77(0.67~2.44) | 2.51(0.90~3.20) | 3.01(1.12~3.51) | 3.01(1.12~3.51) | 3.68(1.12~3.97) | 3.68(1.12~3.97) | 4.60(1.45~5.03) | 4.60(1.45~5.03) | 5.52(1.85~7.31) | 5.52(1.85~7.31) | 6.14(2.50~9.75) |
| EER | 2.82(2.03~3.20) | 2.83(2.00~3.15) | 2.82((2.00~3.10) | 2.82((2.00~3.10) | 2.72(1.95~3.00) | 2.72(1.95~3.00) | 2.83(1.98~3.05) | 2.83(1.98~3.05) | 2.72(1.96~2.98) | 2.72(1.96~2.98) | 2.77(2.03~3.00) |
| ErP Level(Water outlet at 35℃/55℃) | A+++/A+++ | A+++/A++ | A+++/A+++ | ||||||||
| Rated Power Input(kW) | 3.6 | 4.65 | 5.05 | 5.05 | 5.45 | 5.86 | 6.95 | 6.95 | 7.5 | 10.52 | 12.52 |
| Rated Current Input(A) | 15 | 20.4 | 23 | 8.5 | 25 | 10 | 30.5 | 11.7 | 35 | 17.3 | 19.5 |
| Refrigerant | R290 | ||||||||||
| Rated Water Flow(m3/h) | 1 | 1.37 | 1.72 | 1.72 | 2.06 | 2.06 | 2.75 | 2.75 | 3.1 | 3.1 | 4.2 |
| Water Pressure Drop(kPa) | 20 | 25 | 20 | 55 | 60 | ||||||
| Fan Quantity | 1 | 2 | |||||||||
| Fan Motor Type | DC Inverter | ||||||||||
| Compressor | DC Inverter | ||||||||||
| Circulating Pump | Inverter Type/Built-in | ||||||||||
| Max. Outlet Water Temp. (℃) | 75 | ||||||||||
| Operating Temp. Range(Heating )(℃) | -25~45 | ||||||||||
| Operating Temp. Range(Cooling)(℃) | 16~45 | ||||||||||
| Sound Pressure at 1m Distance(dB(A)) | 43(39~51) | 43(39~51) | 44(39~52) | 44(39~52) | 46(39~52) | 46(39~55) | 48(39~55) | 48(39~55) | 49(39~55) | 49(39~55) | 52(50~60) |
| Sound Pressure at 3m Distance(dB(A)) | 35(32~44) | 35(32~44) | 37(32~45) | 37(32~45) | 39(32~45) | 39(32~45) | 41(32~48) | 41(32~48) | 47(32~48) | 47(32~48) | 45(43~53) |
| Water Piping Connections(inch) | G1 | ||||||||||
| Net Weight(kg) | 140 | 145 | 155 | 155 | 155 | 155 | 195 | 195 | 215 | 215 | 220 |
| Gross Weight(kg) | 160 | 165 | 175 | 175 | 175 | 175 | 220 | 220 | 240 | 240 | 240 |
| Net Dimensions(L*D*H)(mm) | 1270*460*955 | 1490*500*1005 | 1190*500*1515 | ||||||||
| Packed Dimensions(L*D*H)(mm) | 1300*500*1090 | 1520*540*1140 | 1220*540*1640 | ||||||||
