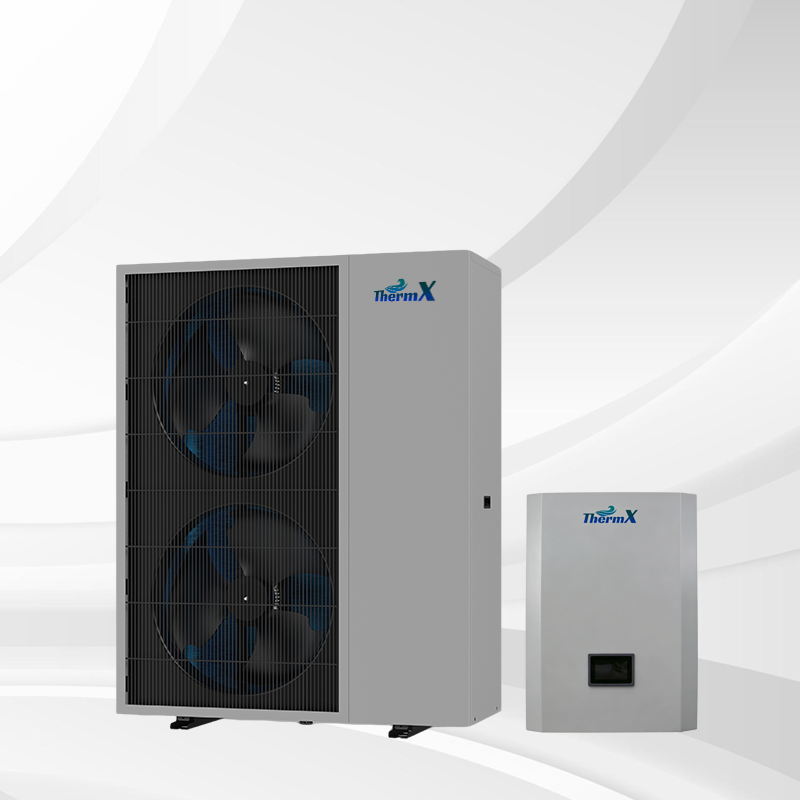

R32 Split Air-to Water Heat Pumps
| Model | ThermX-R8-S | ThermX-R12-S | ThermX-R18-S | ThermX-R22-S | ThermX-R12-S | ThermX-R12-S/3 | ThermX-R22-S/3 |
| FOB Price | USD | US$1,780.00 | US$1,980.00 | US$2,580.00 | US$2,780.00 | US$2,050.00 | US$2,660.00 | US$2,850.00 |
| Heating Capacity Min./Max. | k/W | 4.2~8.0 | 6.5~12.6 | 8.6~18.0 | 10.5~22 | 6.5~12.6 | 8.6~18.0 | 10.5~22 |
| Heating Power Input Min./Max. | k/W | 0.90~1.88 | 1.42~2.98 | 1.86~4.25 | 2.28~5.3 | 1.40~2.98 | 1.84~4.23 | 2.26~5.2 |
| COP | / | 4.23~4.64 | 4.22~4.62 | 4.25~4.65 | 4.24~4.63 | 4.26~4.65 | 4.22~4.62 | 4.23~4.63 |
| Heating Condition: Ambient Temp. (DB/WB): 7°C/6°C, Water Temperature (inlet/outlet): 30°C/35°C |
| Heating Capacity Min./Max. | k/W | 3.6~6.81 | 5.5~10.6 | 7.3~14.6 | 8.8~17.6 | 5.5~10.6 | 7.3~14.6 | 8.8~17.6 |
| Heating Power Input Min./Max. | k/W | 0.93~2.18 | 1.42~3.43 | 1.85~4.66 | 2.24~5.62 | 1.42~3.43 | 1.85~4.66 | 2.24~5.62 |
| COP | / | 3.10~3.89 | 3.07~3.86 | 3.13~3.95 | 3.12~3.93 | 3.07~3.86 | 3.13~3.95 | 3.12~3.93 |
| DHW Condition: Ambient Temp. (DB/WB): 7°C/6°C, Water Temperature (inlet/outlet): 15°C/55°C |
| Cooling Capacity Min./Max. | k/W | 2.9~5.8 | 4.2~8.2 | 6.2~12.3 | 7.2~14.2 | 4.2~8.2 | 6.2~12.3 | 7.2~14.2 |
| Cooling Power Input Min./Max. | k/W | 0.89~2.33 | 1.30~3.33 | 1.86~4.80 | 2.17~5.55 | 1.30~3.33 | 1.86~4.80 | 2.17~5.55 |
| EER | / | 2.49~3.27 | 2.46~3.23 | 2.56~3.33 | 2.56~3.32 | 2.46~3.23 | 2.56~3.33 | 2.56~3.32 |
| Cooling Condition: Ambient Temp. (DB/WB): 35°C/24°C, Water Temperature (inlet/outlet): 12°C/7°C |
| Noise (dB(A)) | k/W | ≤53 | ≤55 | ≤57 | ≤58 | ≤55 | ≤57 | ≤58 |
| Power Supply | k/W | 230V/1Ph/50-60Hz | 380V/3Ph/50-60Hz |

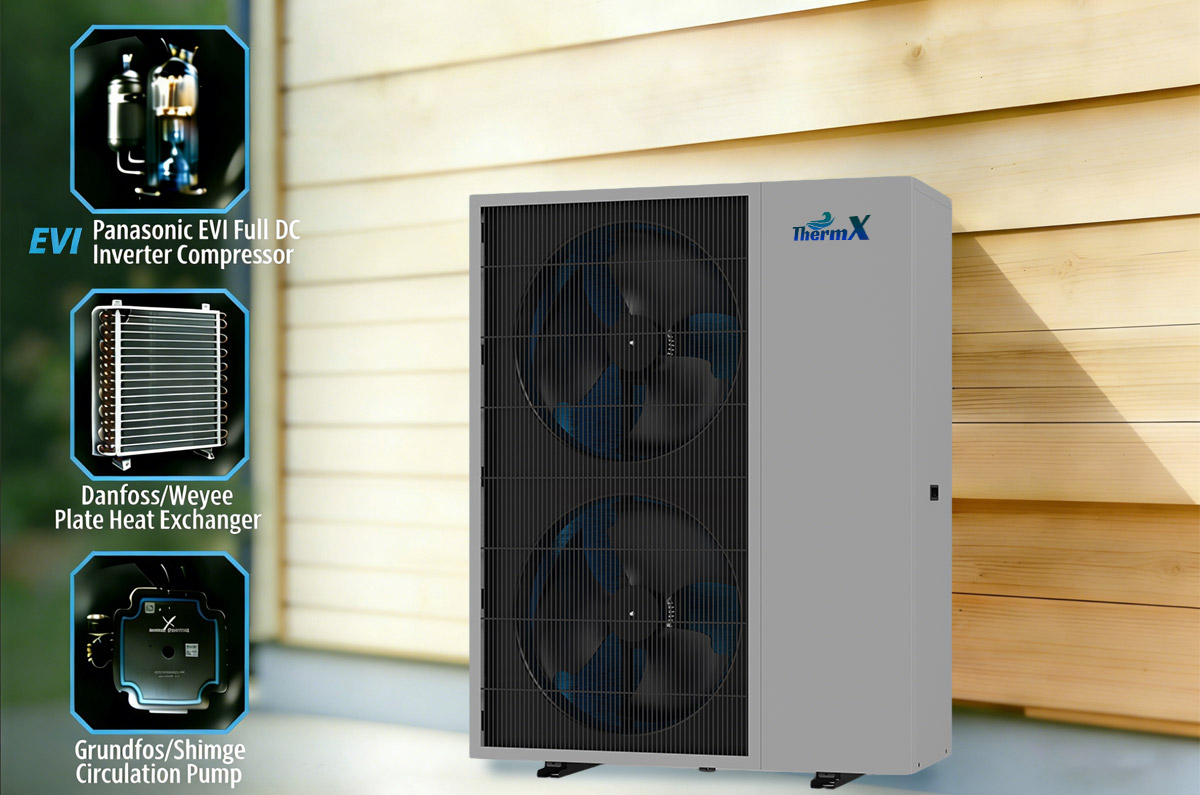

| Compressor | / | Panasonic |

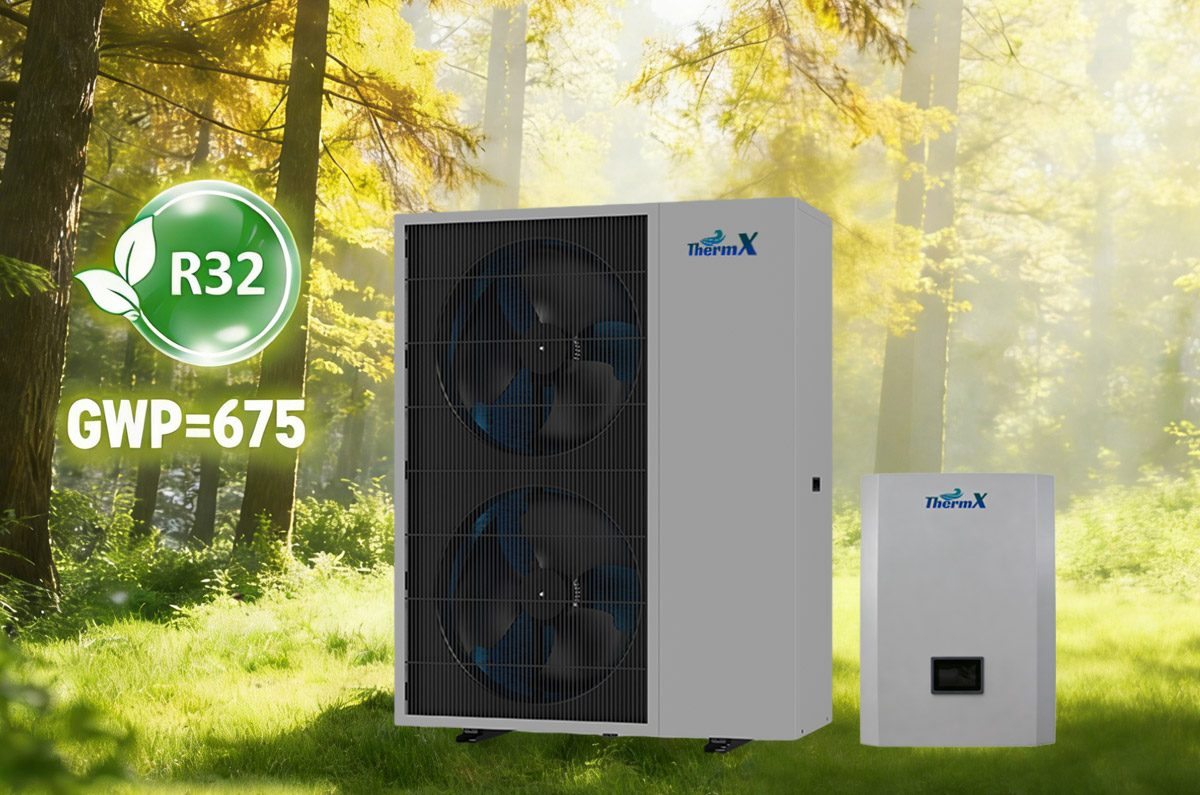

| Refrigerant | R32 |

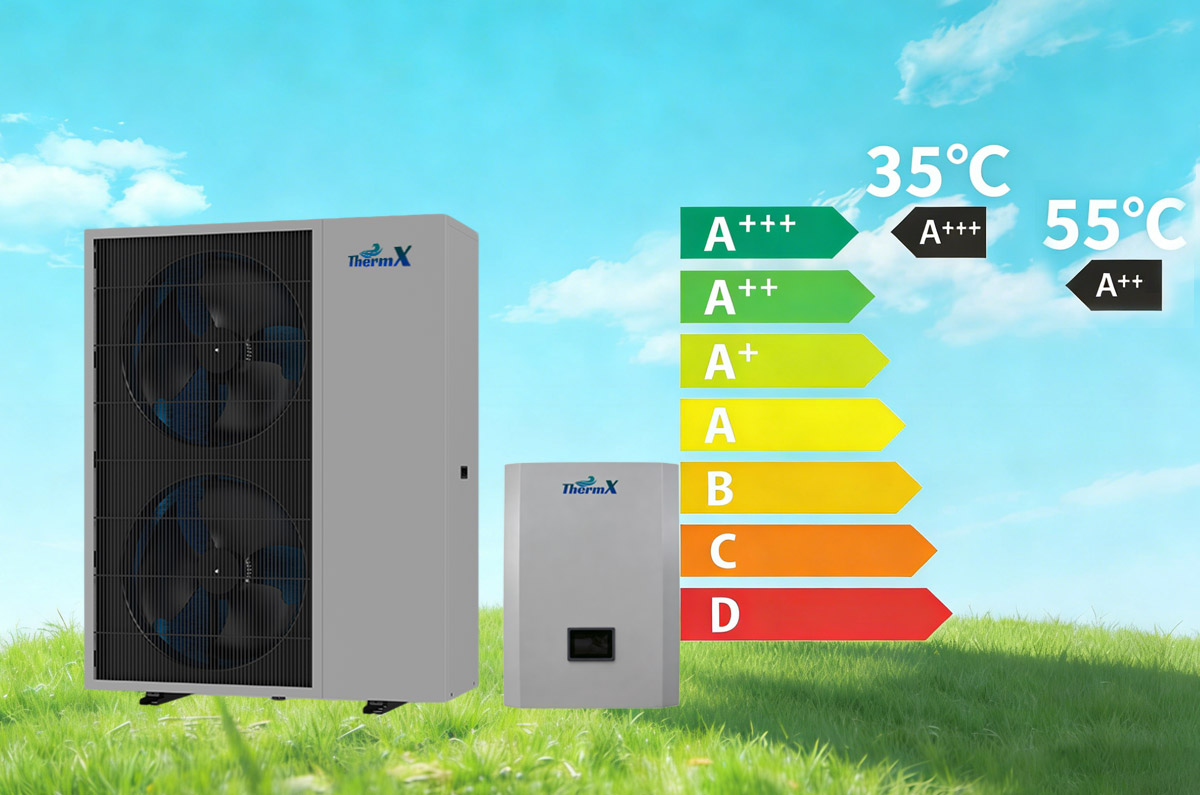

| Energy Efficiency Class (35℃) | / | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ |
| Energy Efficiency Class (55℃) | / | A++ | A++ | A++ | A++ | A++ | A++ | A++ |
| Working Temperature | ℃ | -30~43 |
| Net weight (kg) | k/W | 85 | 95 | 135 | 140 | 95 | 135 | 140 |
| Unit size (W/H/D) |
| 970×475×820 | 1030×475×970 | 1000×480×1380 | 1000×480×1380 | 1030×475×970 | 1000×480×1380 | 1000×480×1380 |
| Indoor Unit |
| Water Pump | / | Shimge |
| Electric Heater | k/W | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Expansion tank | L | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Water Pressure Drop | kPa | 25 | 25 | 35 | 35 | 25 | 35 | 35 |
| Max Water head | m | 9 | 9 | 12 | 12 | 9 | 12 | 12 |
| Pipe of dimension |
| DN5 |
| Unit size (W/H/D) | mm | 740×520×312 |
| Net Weight | kg | 38 | 38 | 42 | 42 | 38 | 42 | 42 |
