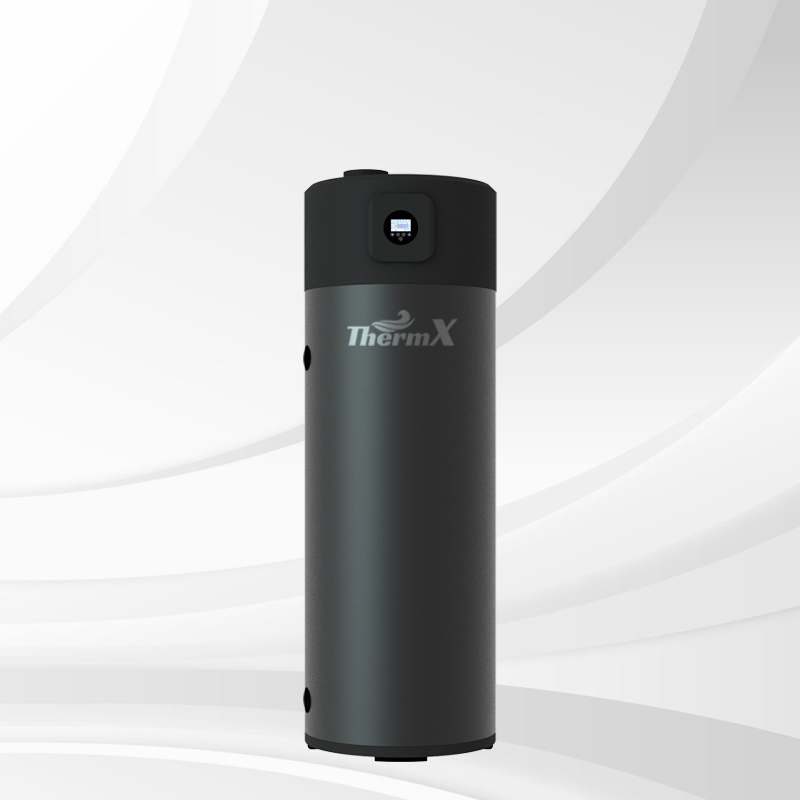

R290 Top-Discharge All-in-One Heat Pump
Product Features
- • Top Discharge Design for Flexible, Space-Saving Installation
- • ON-OFF
- • Eco-friendly R290 Refrigerant
- • Noise Level as low as 55dB(A)
- • Dual Tank Options: Enamel or Stainless Steel
- • A+ Energy Efficiency
- • Stable Operation under Low Temperature at -7°C

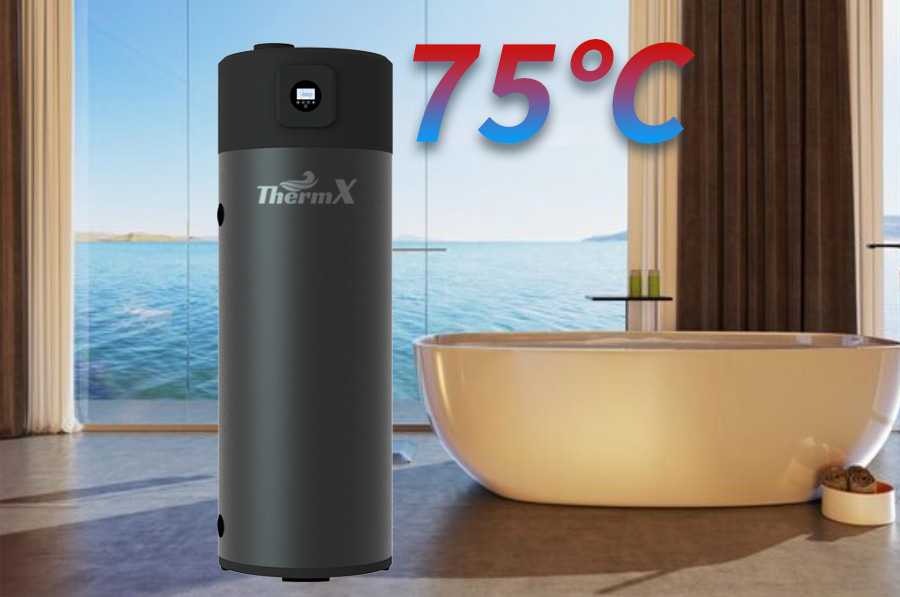

- • 75℃ High-Temperature Water Outlet
- • Remote Control Management: WiFi & APP & IOT platform

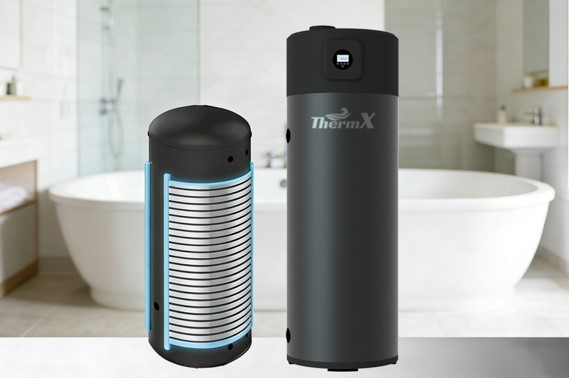

Microchannel Heat Coil
Featuring advanced microchannel technology, this heat pump water heater delivers superior heat transfer and efficiency compared to traditional copper-aluminum tube designs. The innovative construction enhances overall performance while achieving significant energy savings—offering a reliable, eco-friendly solution for your hot water needs.

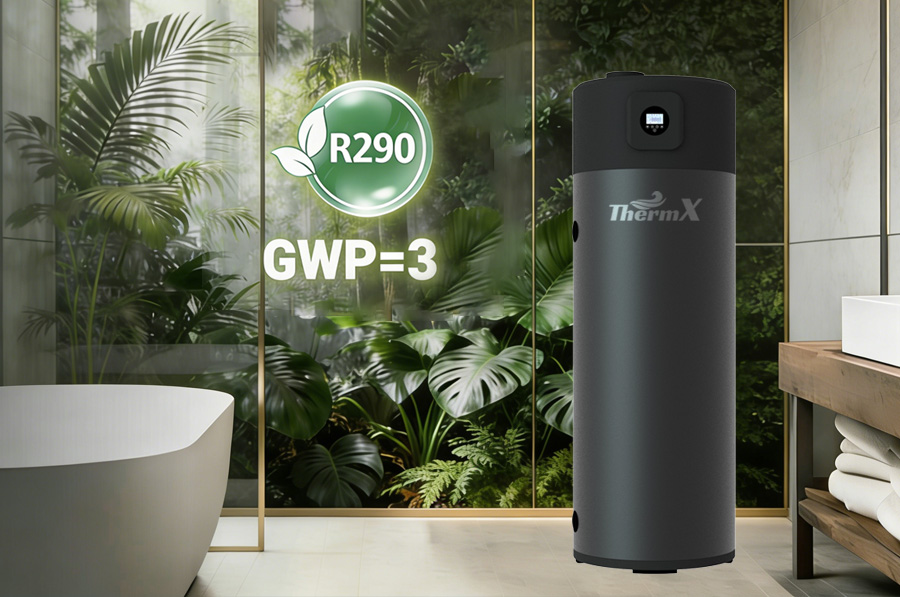

Eco-Friendly
Powered by R290 refrigerant with an ultra-low Global Warming Potential (GWP) of just 3, this heat pump water heater delivers greener, more efficient water heating. Enjoy reliable hot water while dramatically reducing your environmental footprint—the ideal choice for eco-conscious households.

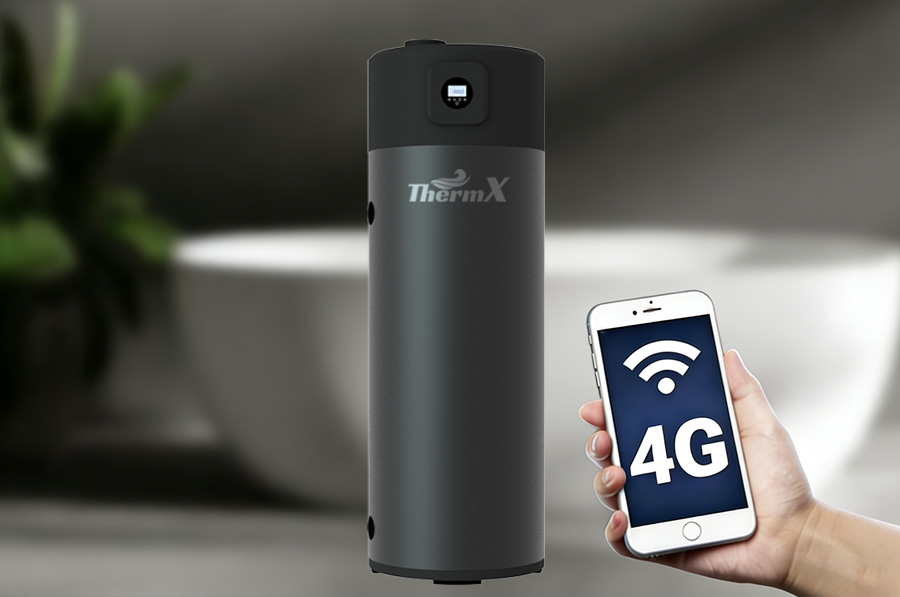

Smart Control
Built-in Wi-Fi and 4G modules enable seamless remote intelligent control. Easily optimize temperature and performance from anywhere, enhancing user convenience and delivering a cutting-edge hot water solution for modern homes.
Safe Operation
Multiple safety features include high/low pressure, overcurrent, phase-loss, anti-freeze, and delayed start protections, ensuring safe and stable operation under all conditions.
| Model | THX-G100TD-S | THX-G120TD-S | THX-G150TD-S | THX-G150TD-S | THX-G200TD-S | THX-G250TD-S | THX-G300TD-S |
| Wall-mounted | Wall-mounted | Wall-mounted | Floor-standing | Floor-standing | Floor-standing | Floor-standing | |
| Volume(L) | 100 | 120 | 150 | 150 | 200 | 250 | 300 |
| Power Supply | 220~240V/1ph/50Hz | ||||||
| Tapping Cycle | M | M | L | L | L | XL | XL |
| Nominal Heating Capacity(kW) | 1.1 | 1.6 | |||||
| Energy Class | A+ | ||||||
| Heating Capacity at Air 7/6℃, Water 15℃ in, 55℃ out | |||||||
| Heating Capacity(kW) | 0.8 | 0.82 | 0.84 | 0.84 | 1.23 | 1.3 | 1.3 |
| Heating Time(H) | 5.16 | 6.13 | 7.18 | 7.18 | 6.62 | 9.77 | 9.77 |
| COP | 2.65 | 2.65 | 2.82 | 2.82 | 2.93 | 3.1 | 3.15 |
| Standby Power Input(7/6℃)(W) | 30 | ||||||
| Water Heating Energy Efficiency | 113.76% | 113.72% | 118.99% | 118.99% | 122.47% | 127.80% | 129.60% |
| Heating Capacity at Air 14/13℃, Water 15℃ in, 55℃ out | |||||||
| Heating Capacity(kW) | 0.94 | 0.97 | 1 | 1 | 1.41 | 1.43 | 1.43 |
| COP | 3.05 | 3.2 | 3.34 | 3.34 | 3.42 | 3.53 | 3.53 |
| Heating Capacity at Air 20/15℃, Water 15℃ in, 55℃ out | |||||||
| Heating Capacity(kW) | 0.95 | 0.98 | 1.03 | 1.03 | 1.48 | 1.5 | 1.5 |
| COP | 3.24 | 3.45 | 3.56 | 3.56 | 3.65 | 3.71 | 3.75 |
| Refrigerant | R290 | ||||||
| Electric Heater(kW) | 1.6 | ||||||
| Sound Power Level(dB(A)) | 55 | ||||||
| Max. Water Outlet Temp. | 60 | ||||||
| Max. Water Outlet Temp.(℃) | 70 | ||||||
| Operation Range(℃) | -7~45 | ||||||
| Water Outlet Temp. Setting Range(℃) | 10~70 | ||||||
| Rated Power(W) | 400+1600(e-heater) | 900+1600(e-heater) | |||||
| Rated Current(A) | 2.1+7.1(e-heater) | 3.9+7.1(e-heater) | |||||
| Rated Water Yield(L/H) | 23.6 | 34.4 | |||||
| Air Flow(m³/h) | 500 | 450 | |||||
| Unit Protection Indoor Unit | IPX1 | ||||||
| Max. Allowed Pressure of Tank(bar) | 10 | ||||||
| Inner Tank Material | Duplex 2101/2205, 304/316L | ||||||
| Hot Water Outlet(inch) | G1/2 | G3/4 | |||||
| Cold Water Inlet(inch) | G1/2 | G3/4 | |||||
| Size of Water Drain(inch) | G1/2 | G3/4 | |||||
| Condensed Water Outlet(inch) | G1/2 | ||||||
| Net Dimensions(L*W*H)(mm) | Ø510*1240 | Ø510*1390 | Ø510*1616 | Ø510*1616 | Ø570*1720 | Ø650*1626 | Ø650*1826 |
| Packed Dimensions(L*W*H)(mm) | 570*570*1280 | 570*570*1550 | 570*570*1800 | 570*570*1730 | 640*640*1850 | 720*720*1756 | 720*720*1956 |
| Net Weight(kg) | 45 | 48 | 53 | 53 | 66 | 73 | 80 |
| Gross Weight(kg) | 61 | 68 | 76 | 76 | 81 | 91 | 100 |
| Note: The data above if fore reference only. Please refer to the nameplate on the unit if for more specific data. | |||||||
| Model | THX-G100TD-E | THX-G120TD-E | THX-G150TD-E | THX-G150TD-E | THX-G200TD-E | THX-G250TD-E | THX-G300TD-E |
| Volume(L) | 100L | 120L | 150L | 150L | 200L | 250L | 300L |
| Installation type | Wall-mounted | Wall-mounted | Wall-mounted | Floor-standing | Floor-standing | Floor-standing | Floor-standing |
| Power Supply | 220~240V/1ph/50Hz | ||||||
| Tapping Cycle | M | L | XL | ||||
| Nominal Heating Capacity(kW) | 1.1 | 1.6 | |||||
| Energy Class | A+ | ||||||
| Heating Capacity at Air 7/6℃, Water 15℃ in, 55℃ out | |||||||
| Heating Capacity(kW) | 0.8 | 0.82 | 0.84 | 0.84 | 1.302 | 1.18 | 1.18 |
| Heating Time(H) | 5.16 | 6.13 | 7.18 | 7.18 | 6.62 | 9.77 | 9.77 |
| COP | 2.65 | 2.75 | 2.89 | 2.89 | 2.97 | 3.02 | 3.02 |
| Stangby Power Input(7/6℃) | 30 | ||||||
| Water Heating Energy Efficiency | 113.76% | 113.72% | 118.99% | 118.99% | 122.47% | 127.80% | 129.60% |
| Heating Capacity at Air 14/13℃, Water 15℃ in, 55℃ out | |||||||
| Heating Capacity(kW) | 0.94 | 0.97 | 1 | 1 | 1.41 | 1.43 | 1.43 |
| COP | 3.05 | 3.2 | 3.34 | 3.34 | 3.42 | 3.53 | 3.53 |
| Heating Capacity at Air 20/15℃, Water 15℃ in, 55℃ out | |||||||
| Heating Capacity(kW) | 0.95 | 0.98 | 1.03 | 1.03 | 1.48 | 1.5 | 1.5 |
| COP | 3.24 | 3.45 | 3.56 | 3.56 | 3.56 | 3.71 | 3.75 |
| Refrigerant | R290 | ||||||
| Electric Heater(kW) | 1.6 | ||||||
| Sound Power Level(dB(A)) | 55 | ||||||
| Max. Water Output Temp. | 60 | ||||||
| Max. Water Outlet Temp.(℃) | 70 | ||||||
| Operation Range(℃) | -7~45 | ||||||
| Temp. Setting Range(℃) | 10~70 | ||||||
| Rated Power(W) | 400+1600(e-heater) | 900+1600(e-heater) | |||||
| Rated Current(A) | 2.1+7.1(e-heater) | 3.9+7.1(e-heater) | |||||
| Rated Water Yield(L/H) | 23.6 | 34.4 | |||||
| Air Flow(m³/h) | 500 | 450 | |||||
| Unit Protection Indoor Unit | IPX1 | ||||||
| Max. Allowed Pressure of Tank(bar) | 10 | ||||||
| Inner Tank Material | Enamel | ||||||
| Hot Water Outlet(inch) | G1/2 | G3/4 | |||||
| Cold Water Inlet(inch) | G1/2 | G3/4 | |||||
| Size of Water Drain(inch) | G1/2 | G3/4 | |||||
| Condensed Water Outlet(inch) | G1/2 | ||||||
| Net Dimension(D*W*H)(mm) | Ø510*1240 | Ø510*1435 | Ø510*1660 | Ø510*1690 | Ø570*1720 | Ø650*1720 | Ø650*1926 |
| Dimensionis(L*W*H)(mm) | 570*570*1280 | 570*570*1595 | 570*570*1845 | 570*570*1820 | 640*640*1890 | 720*720*1850 | 720*720*2070 |
| Net Weight(kg) | 51 | 59 | 69 | 71 | 93 | 105 | 117 |
| Gross Weight(kg) | 67 | 75 | 85 | 87 | 109 | 123 | 137 |
