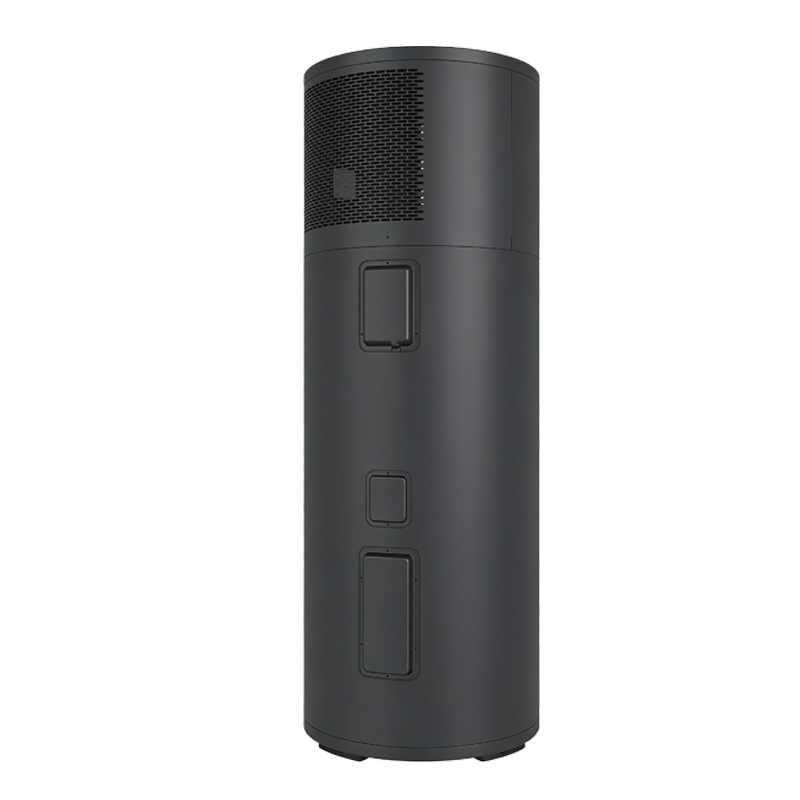

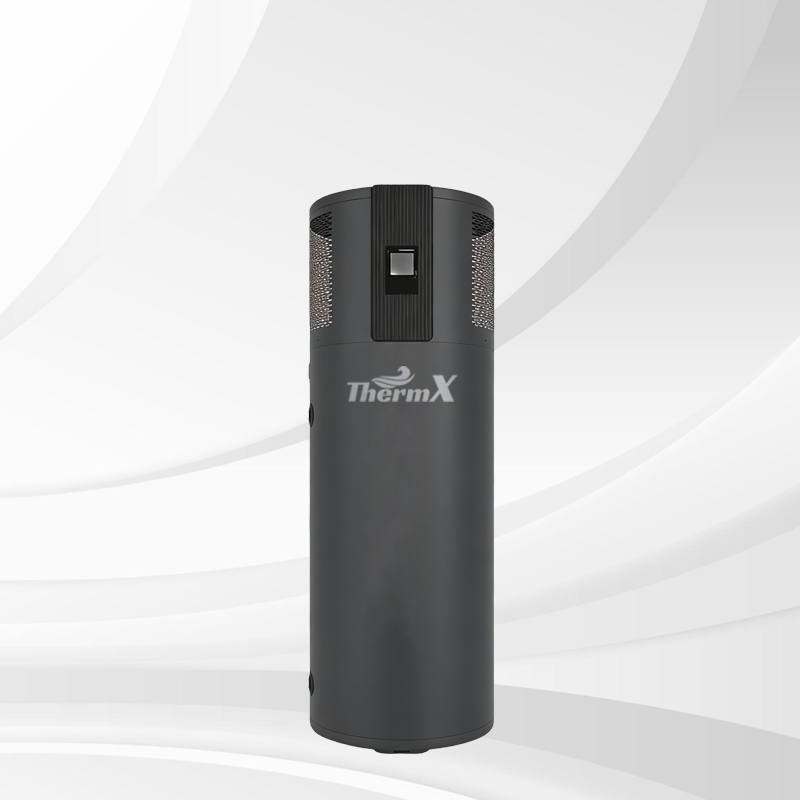

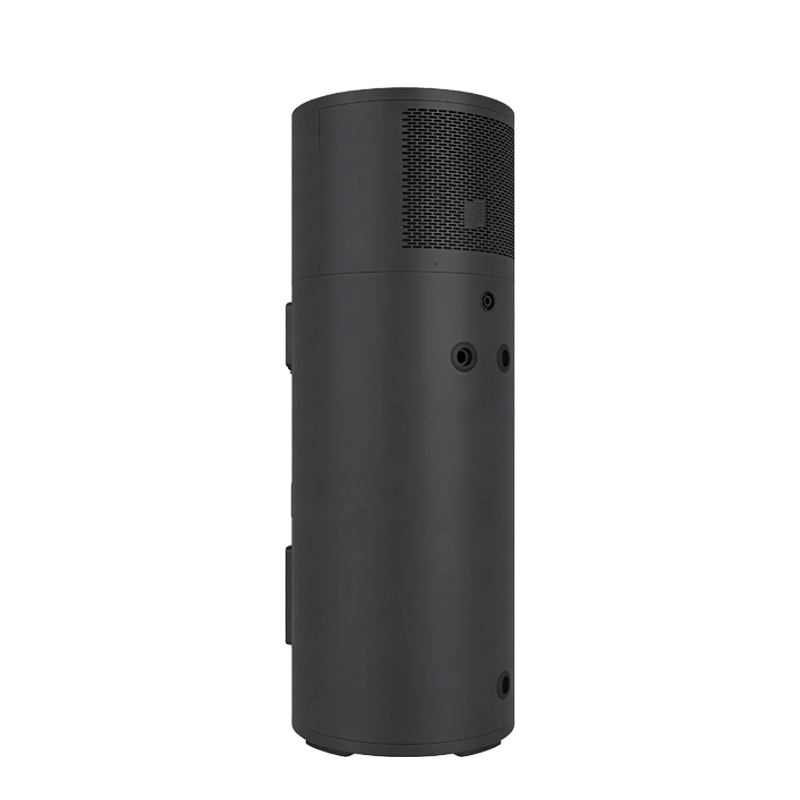

R290 Side-Discharge All-in-One Heat Pump
Product Features
- • Side Discharge Design for Enhanced Airflow & Heat Exchange
- • Full DC Inverter Technology
- • Noise Level as Low as 43dB(A)
- • Eco-friendly R290 Refrigerant
- • Enamel Inner Tank
- • High STC Value of 36,Certified with SAA, Watermark, Standard Mark
- • Stable Operation under Low Temperature at -7°C

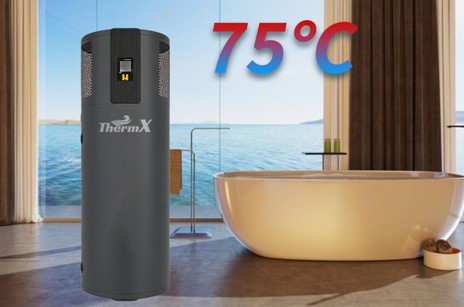

- • 75℃ High-Temperature Water Outlet
- • Remote Control Management: WiFi & APP & IOT platform

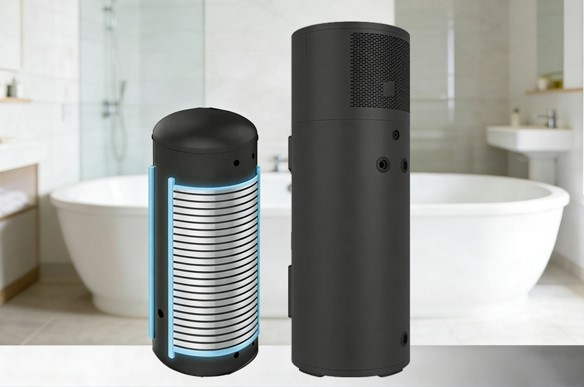

Microchannel Heat Coil
Featuring advanced microchannel technology, this heat pump water heater delivers superior heat transfer and efficiency compared to traditional copper-aluminum tube designs. The innovative construction enhances overall performance while achieving significant energy savings—offering a reliable, eco-friendly solution for your hot water needs.

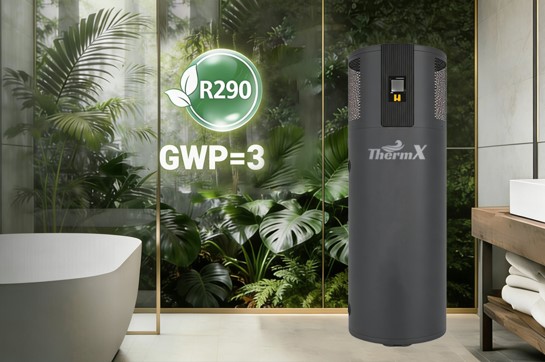

Eco-Friendly
Powered by R290 refrigerant with an ultra-low Global Warming Potential (GWP) of just 3, this heat pump water heater delivers greener, more efficient water heating. Enjoy reliable hot water while dramatically reducing your environmental footprint—the ideal choice for eco-conscious households.

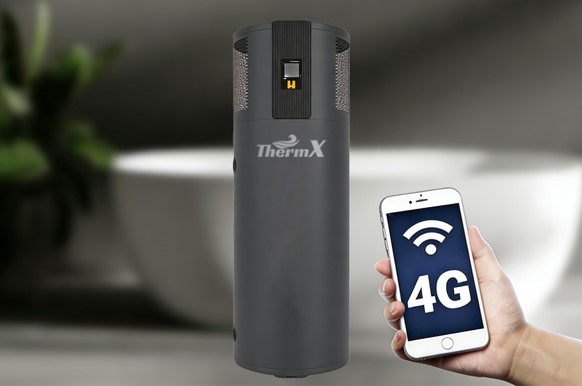

Smart Control
Built-in Wi-Fi and 4G modules enable seamless remote intelligent control. Easily optimize temperature and performance from anywhere, enhancing user convenience and delivering a cutting-edge hot water solution for modern homes.
Safe Operation
Multiple safety features include high/low pressure, overcurrent, phase-loss, anti-freeze, and delayed start protections, ensuring safe and stable operation under all conditions.
| Model | THX-G210SD | THX-G270SD | THX-G320SD |
| Water Tank Volume(L) | 210L | 270L | 320L |
| Power Supply | 220~240V/1ph/50~60Hz | ||
| Rated Heating Capacity(kW) | 3 | 3 | 3 |
| Rated Power Input(kW) | 0.577 | 0.577 | 0.577 |
| COP | 5.2 | 5.2 | 5.2 |
| Max. Power Input(kW) | 3.1 | 3.1 | 3.1 |
| Max. Current Input(A) | 16 | 16 | 16 |
| Water Tank Volume(L) | 210 | 270 | 320 |
| Refrigerant | R290 | ||
| Heat Exchanger | Microchannel | ||
| Defrosting Method | By 4-way Valve | ||
| Water Proof Level | IPX4 | ||
| Max. Water Tank Pressure(MPa) | 0.85 | ||
| Outer Casing/Shape | Metel | ||
| Expansion Valve | Electronic | ||
| Air Flow(m³/h） | 1000 | ||
| Air Discharge | Horizontal | ||
| Air Duct Diameter | Non-ducted | ||
| Electric Heater (kW) | 1.6 | ||
| Rated Current(A) | 7.1 | ||
| Default Water Temp.(℃) | 60 | ||
| Max. Water Temp.(℃) | 75 | ||
| Operating Ambient Temp.(℃) | -7~46 | ||
| Noise(dB(A)) | 43 | ||
| Water Pipe Diameter(inch) | G3/4 | ||
| Net Weight(kg) | 116 | 130 | 146 |
| Gross Weight(kg) | 126 | 150 | 166 |
| Unit Dimensions(L*W*H)(mm) | 650*650*1650 | 650*650*1870 | 650*650*2090 |
| Packed Dimensions(L*W*H)(mm) | 720*720*1785 | 720*720*2005 | 720*720*2225 |
| Heating Capacity at Air 20℃/15℃, Water Temp. from 15℃~55℃ | |||
